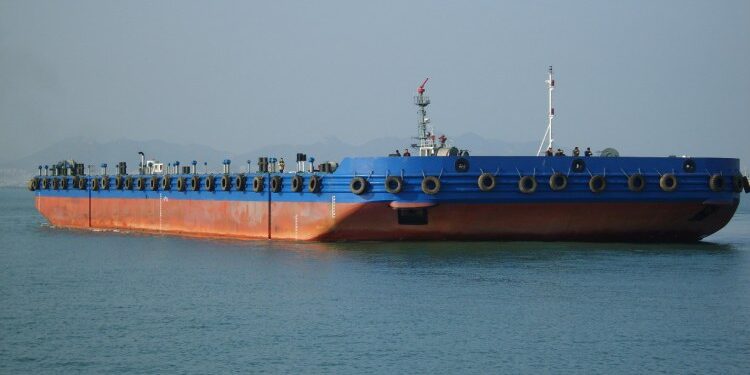

1500T Barge

Surface blasting and rust removal, spraying three layers of epoxy zinc-rich marine special primer, a layer of epoxy zinc-rich marine special topcoat. Zinc plate sacrificial anode anti-rust is set at key parts.

1500T Flat Steel Self-propelled Barge

Equipment name	Flat steel self-propelled barge
Equipment model	YS-1500
Main dimensions	Total length		61.3m
	Total width		15.0m
	moulded depth		3.1m
Performance	light load draft		1.5m
	load draught		2.5m
	Rated capacity		1500ton
	No-load speed		11Kts
	Running speed loaded		9Kts
	deck load		6T/㎡
Floating body materials	length		61.0m	Q235 steel C 0.14~0.22% Mn 0.30~0.65 Si≤0.30 S≤0.050 P≤0.045   Anti-rust treatment, 2 layers of epoxy zinc-rich primer, 1 layer of curing agent, 1 layer of epoxy zinc-rich surface paint.
	width		14.8m
	height		3.1m
	material	side plate	8mm
		baseboard	10mm
		deck	12mm
	Floating body connection		Field welded connection
Control room	length		3.0m	Wall color is white, control room top is white, material is steel, door window is aluminium alloy sliding door window.
	width		2.6m
	height		2.0m
Propeller(2 sets）	type		SJ-1500
	Diameter of paddle		1500mm
	Matching gear box		HANGZHOU Gear400
	Matched Main Machine		TypeKTA19-M	CUMMINS
			output power	339kw
			Speed	1744r/min
Big anchor	quantity		3pcs	bower anchor 2pcs，stern anchor 1pcs
Anchor winch 2sets	reduction box		ZQ650	electromagnetic brake， fore body 1set，stern 1 set
	electromotor		15kw
Marine signal light	Whole set
Marine positioning and communication systems	ship radar		FURUNO M 1835	1set   FURUNO
	High frequency intercom		EHF MAINE IC-M324	1set

	Hand-held high frequency walkie-talkie	IC-M23	2sets
generator set	50kw
fire extinguisher	dry powder extinguisher	5sets
gross weight of equipment	About 410 ton
equipped with total power	710kw
Equipment oil consumption	Full speed	About 68 liters per hour
Delivery time	80 working days after receiving 30% downpayment
